Rcr or rcr-f: how to choose

The RCR-F Pro has been designed to excel in competitions on rolling to hilly terrain.It is particularly effective on trails with under 1,500 m of positive gradient over 100 km, with average speeds of 35 to 50 km/h.The RCR Pro has been designed to exceed expectations on hilly to mountainous terrain.It is therefore ideal for trails with more than 1,500 m of positive gradient over 100 km, with average speeds of 25 to 35 km/h.

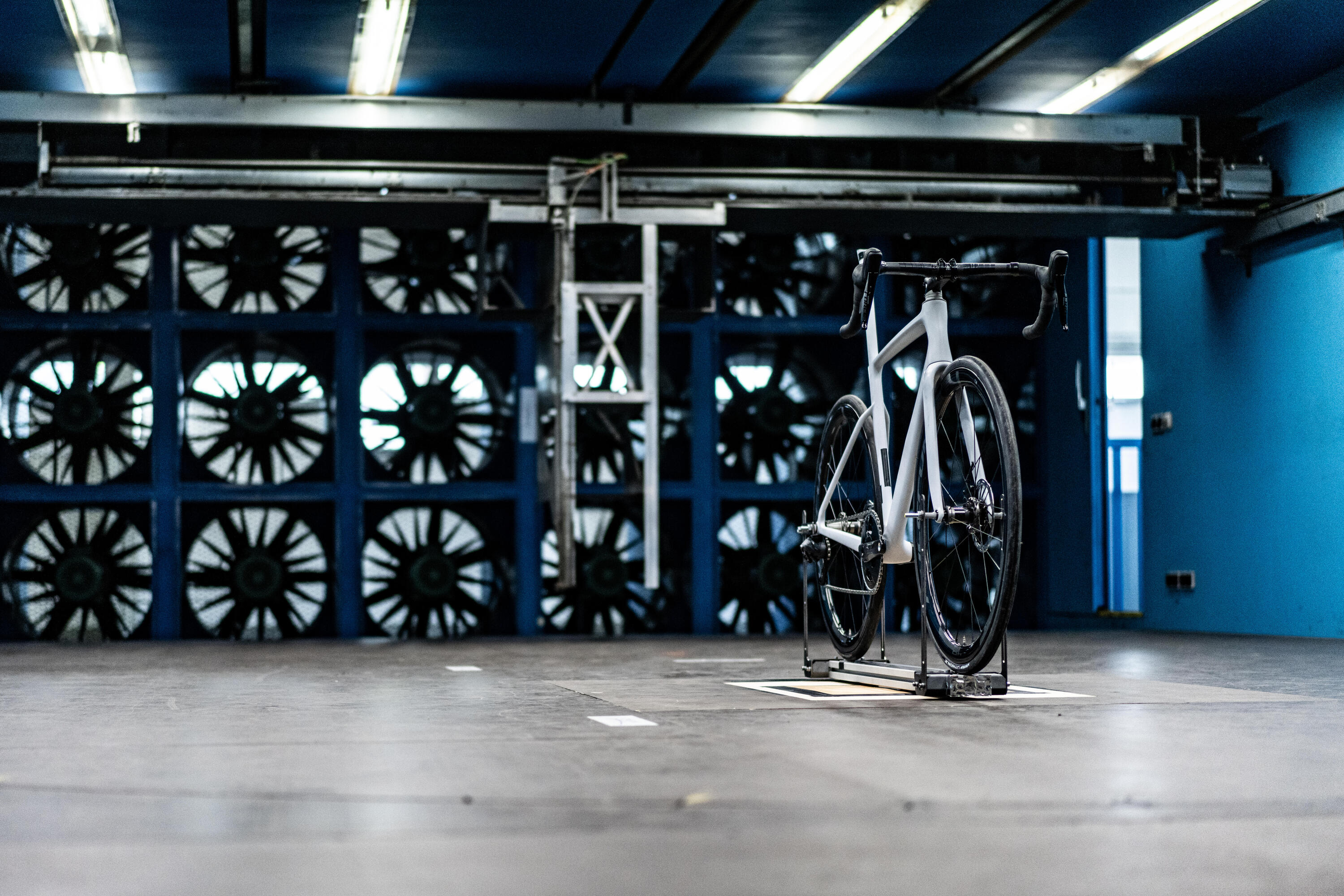

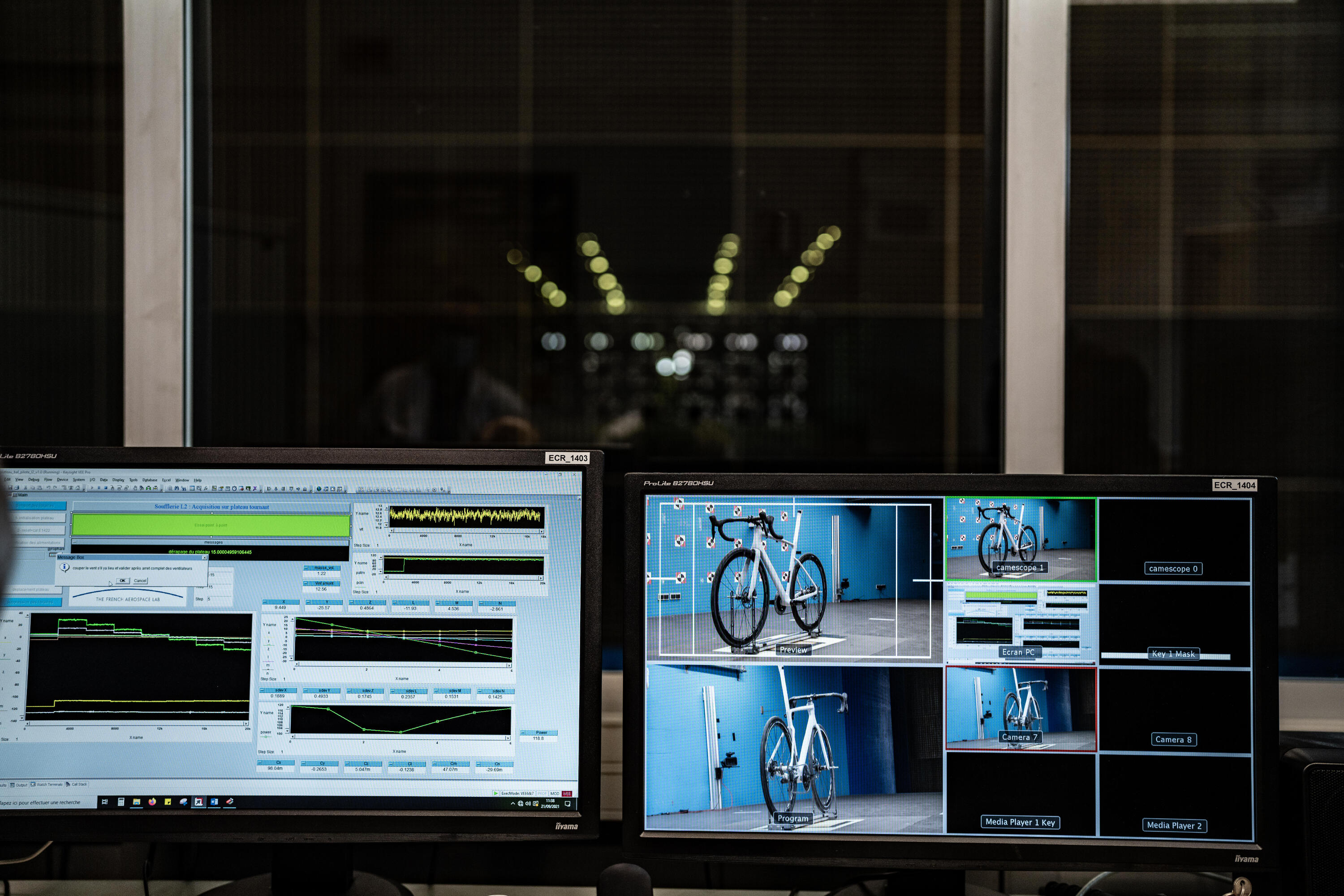

The story behind the design: aerodynamics

The RCR-F frame is the result of thorough work on aerodynamics, carried out with our partner and aerodynamic optimisation expert, Swiss Side. With one purpose in mind: to design the fastest road bike in the pack! After CFD simulations and wind-tunnel tests, the final contours have been tested in the field by our professional athletes. The result: the RCR-F is 13 watts faster than the RCR at 45 km/h.

The story behind the design: stiffness and performance

The second aspect of its development is the stiffness, with the aim of meeting the needs of the most demanding racers and maximising performance. To do this, a Super High Modulus carbon layup was designed with 517 plies, made exclusively from high-end carbon fibres. The RCR-F is 7% stiffer at the front than the RCR, which makes it especially more effective in fast phases like attacks or sprints.

Rcr-f pro frame/fork

The RCR-F Pro frame and fork have been designed for fast riding on rolling to hilly terrain. The Super High Modulus layup is made from exceptional fibres, offering maximum performance combined with excellent stability at high speed. This frame has been co-developed with the World Tour Decathlon Ag2r La Mondiale team and is used on the longest routes of the UCI circuit. Gross frame weight: 1,010 g (Size M) Gross fork weight: 420 g

Rcr-f pro cockpit

DEDA x VR RCR-F combo to optimise aerodynamics, stiffness and ergonomics. Ergo drops inserts to improve grip on the handlebar drops GPS cyclometer holder included — Garmin, Wahoo and Bryton compatible. Option to install VR x Deda triathlon extenders. Handlebar widths and stem lengths depending on the frame size: XXS 70-400 XS 80-400 S 90-420 M 100-420 L 110-440 XL 120-440 Note that the width measurements are taken at the ends of the handlebars.

Shimano 105 di2 r7100 12s groupset and inpeak-e power sensor

Chainwheel guards 52/36 R7150 front derailleur R7150 12-speed rear derailleur DI2 R7170 12-speed shifters R7100 11-34 cassette Crank length depending on frame size:R7100 cranks + INPEAK-E rechargeable power sensor (left crank) XXS and XS 165mm S 170mm M 172.5mm L and XL 175mm

Shimano r7170 disc brakes

Hydraulic disc brakes: Shimano R7170 disc brake levers Shimano R7170 disc brake callipers Shimano R7170 160 mm disc front disc Shimano R7170 140 mm rear disc

Swiss side hadron² 625 classic wheels

With the rims identical to the Ultimate Series and more economical DT Swiss hubs and spokes, HADRON² Classics offer high-performance aero wheels.Hook construction designed for optimal balance between rolling resistance and aerodynamic performance. With a 62 mm rim height, these wheels are ideal for rolling terrain. Front wheel weight:HADRON² Classic 625:848 g Rear wheel weight: HADRON² Classic 625:996 g

Continental tyres

GP 5000S TR 28 section tyre at the rear. Continental Aero 111 TLR 26 section tyre at the front. Recommendation: switch your tyres to tubeless with the tubeless valve and preventive fluid that come with this bike. Tubeless is more comfortable with better performance, and the tyres can self-repair when you get small pinches. Of course, you should always carry an inner tube in your repair kit, just in case your tyre gets a bigger puncture.

Saddle/seat post

RCR-F carbon offset seat post -15 mm Length depending on frame sizes: XXS 268mm XS 314mm S 330mm M 352mm L 400mm XL 410mm

Choosing your size

The RCR-F is available in sizes XS to XL. See the geometry information and user size correspondence in the product photos. Be sure to know your measurements to make the right choice of frame and perfectly adjust your three support points to fully enjoy the RCR-F. If possible, it is advisable to do a postural study before purchasing.

Drive train maintenance

We want to draw your attention to the need for regular drive train maintenance, particularly if you're riding in difficult conditions (wet and/or dirty roads). Regular maintenance helps your drive train to last longer. Regular chain inspections are essential.

Lifespan of a drive train

When buying a bike, it's important to take into account the cost of servicing it when choosing the drive train. The figures below are averages given as an indication and may vary depending on the care you take of your drive train. The average lifespan of a well-maintained chain is 5,000 km. The average lifespan of a cassette is 10,000-12,000 km. A badly maintained chain can cause the chain to jump, which could damage the frame.

Hydraulic brake maintenance

Hydraulic brakes function using a closed circuit between the brake lever and the caliper. There is a hose to maintain the seal. With time, you'll see a normal loss of pressure in your hoses, leading to a loss of braking efficiency. When your brake guard is too soft or you reach the end of the handlebars, you need to bleed your system. This requires specific tools and knowledge.

Warning and adjustment

WARNING: never brake when empty.If the there is no wheel, you could cause the brake pads to stick. If your disc is touching, follow these steps to realign the wheel and the caliper: - Loosen the brake caliper. - Brake hard and tighten the brake caliper at the same time. If the problem persists, visit a shop.

Guarantee

5 years for frame and fork. 2 years for parts and labour excluding wearing parts.

Aerodynamics

Frame and fork developed in a wind tunnel with our partner, Swiss Side.

Efficiency

Super High Modulus carbon Layup Pro 7% stiffer than the RCR Pro.

Weight

8.2 kg in size M.Tubeless assembly.

Precision

Shimano 105 Di2 12-speed electronic drive train
