Rcx 2

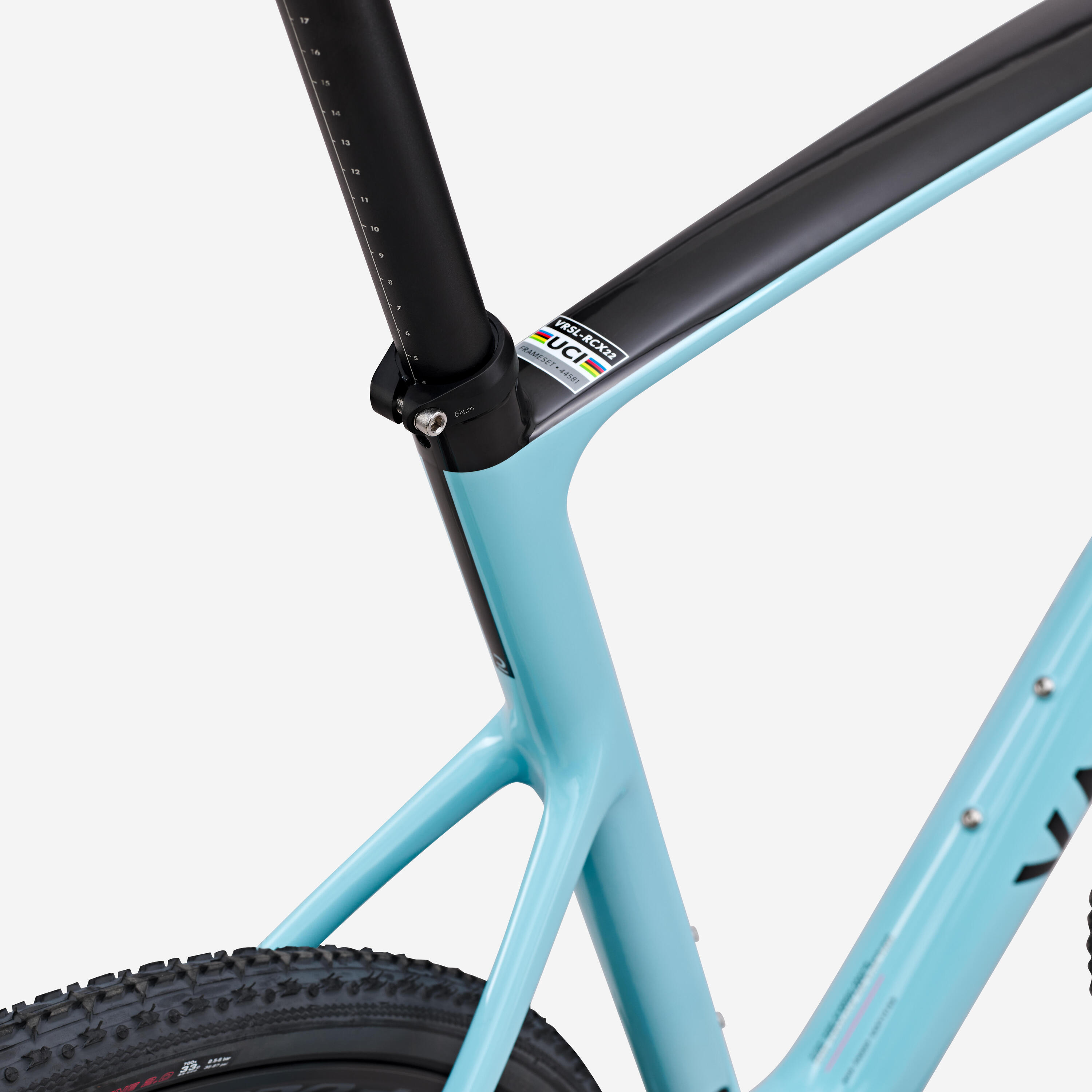

Our new cyclocross bike will have you buzzing during winter rides on CX courses. It's playful and agile and stands out from the crowd with its race performances. This frame features numerous improvements on the previous RCX, most notably better mud shedding where the seat tube joins the seat stay. The main triangle has been raised and the shape of the head tube has been adapted so you can more easily get your shoulder under it when carrying your bike.

Frame and fork

100% carbon frame and fork UCI-approved frame Cable routing through the down tube. Frame weight: 940 g (M) Fork weight: 440 g

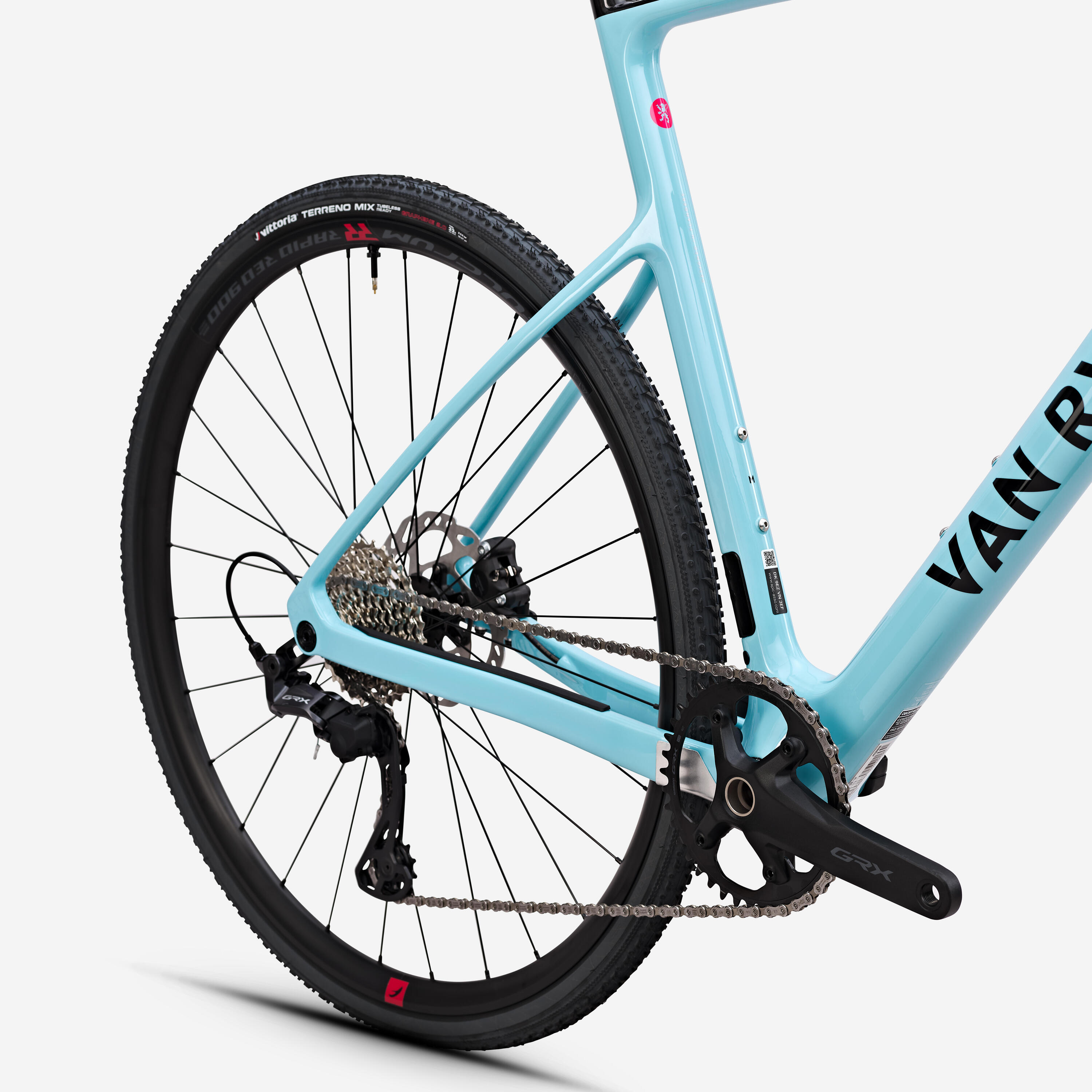

Drive train

Shimano GRX 12 S groupset. This mechanical drivetrain is very precise and sturdy. Shifter: Shimano GRX ST-RX610 Rear derailleur: Shimano GRX RD-RX820 Cassette: Shimano 105 11-32 Hyperglide Chain: Shimano 12S CN-M7100 Chainset: Shimano GRX FC-RX610-1 40 teeth Crank length according to bike size: XS 165 S 170 M 172.5 L/XL 175

Drive train maintenance

Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads). Regular maintenance will help your drive train to last for longer. You should regularly check your chain with our chain wear indicator, which is available on our website.

Brakes

Shimano GRX BR-RX410 hydraulic disc brakes for powerful, progressive braking. Shimano SM-RT70 160 mm front and rear rotors Your brakes will need bedding in. Simply brake gradually 20 times at a low speed (20 km/h), then repeat at 30 km/h. Make sure to bed in both brakes. Bedding in creates more friction between the disc and brake pad.

Hydraulic brake maintenance

Hydraulic brakes function using a closed circuit between your brake lever and your caliper. There is a hose to maintain the seal. With time, you'll see a normal loss of pressure in your hoses, leading to a loss of braking efficiency. When your brake guard is too soft, or you stop short against your handlebar, you need to bleed your system. This requires specific tools and knowledge.

Fulcrum rapid red 900 wheels

Wheel diameter: 700 C Weight: 1870 g Rim material: Aluminium Circle material: Aluminium, asymmetric Height: front and rear: 24.1 mm Width: 27.1 mm Inner width 22 mm Braking system: Disc brake Front axle compatibility: HH12-100 Rear axle compatibility: HH12-142 Spokes - Front/Rear: 28 Weight limit: 120 kg https://www.fulcrumwheels.com/fr/soutien/roues-oem/rapid-red-900 The frame takes tyres up to section 40.

Tyres

VITTORIA TERRENO MIX CX 33 mm tyres. This versatile tyre has a 120 TPI nylon carcass. TUBELESS READY: Yes We very strongly recommend riding tubeless with sealant for greater comfort and to reduce the risk of punctures. The tyres are fitted without sealant, please follow the procedure below to finalise the preparation before using the bottle supplied (60 ml per tyre): https://www.youtube.com/watch?v=vv6t7gapiIE

Warning and adjustment

Please note: never squeeze the brakes without a wheel being attached, as you could get the brake pads stuck together. If your disc touches, follow these instructions to re-align the wheel and the caliper: - Loosen the wheel axle - Brake hard and tighten the axle at the same time - If the rotor is still touching the brakes, do the same thing and loosen the caliper - If you're unable to resolve the issue, please visit one of our workshops.

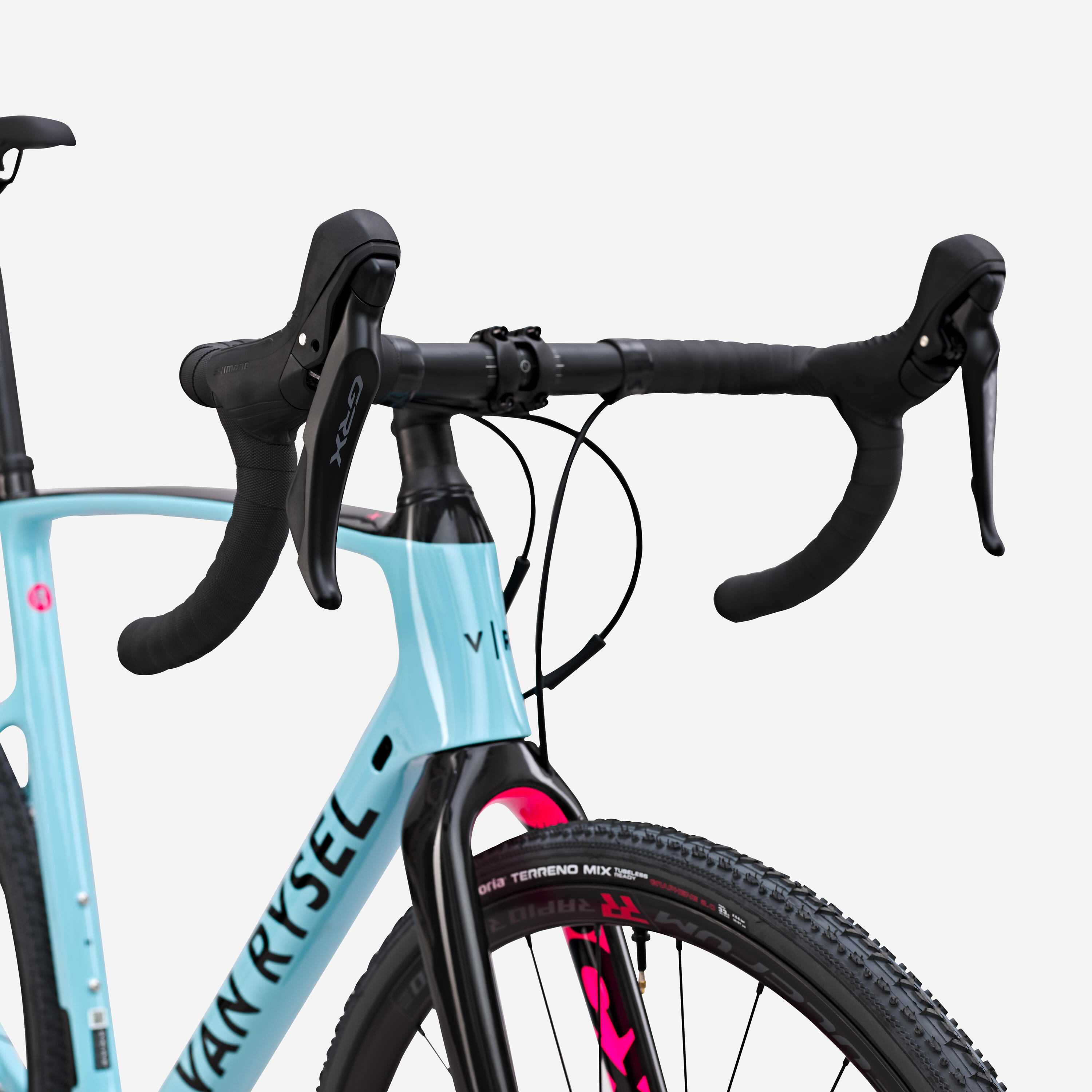

Handlebar / stem / steering

Handlebar: VAN RYSEL ALUMINIUM 400 mm in size XS and S 420 in size M, L and XL STEM: VAN RYSEL ALUMINIUM XS: 70 S: 80 M: 90 L: 100 XL: 110

Saddle and seat post

SADDLE: Van Rysel Seat post: Van Rysel Alu 27.2 XS: 250 mm S/M/L: 350 mm XL: 400 mm

Pedals

pedals not included

Weight

8.9 kg in size M, without pedals

Maintaining your bike

Remember that cross-country and gravel bikes need particular care. They are often subjected to very tough conditions that are more demanding on the materials. Regular maintenance is essential to keep your bike in good condition. The drivetrain needs to be changed more frequently than on a road bike. You should tighten the axles, seat clamp, stem etc. frequently.

Can you do gravel riding with this bike?

Gravel is a generic term that covers a lot of different situations. This bike is first and foremost a cross-country bike. The axles are not reinforced and so the bike is not suitable for carrying heavy loads. The frame does not have holes for attaching a pannier rack or mudguards. However, you can use it outside cross-country races with the right tyres, although the wheels are not designed for rocky downhill rides.

Drivetrain lifespan

When buying a bike, it's important to take into account the cost of servicing it, especially as regards the drive train. The amounts below are averages and are given so that you have a general idea of what to expect. They will of course vary depending on the care you take of your drive train. The average lifespan of a well-maintained cyclocross chain is 4000 km The average lifespan of a cyclocross cassette is 6000-10,000 km

Which size?

Please refer to the bike frame geometry table. If you're between sizes, a shorter bike is better if you want something more responsive and lively. However, if you want to be comfortable when riding long distances, the bigger size is your best bet.

Efficiency

100% carbon frame and fork.

Braking power

Shimano GRX BR-RX410 hydraulic disc brakes

Carrying comfort

Flattened top tube for easily carrying your bike on your shoulder

Versatility

Designed for cyclo-cross, but can take 40 mm tyres.
